Radio Frequency Identification (RFID) is a wireless technology that uses radio waves to automatically identify and track tags attached to objects.
The Invisible Revolution: RFID (Radio Frequency Identification) has quietly woven itself into the fabric of daily life, often operating unseen behind the scenes of the world's most critical infrastructures. From the transit card you tap to commute, to the seamless inventory tracking in modern retail stores, RFID is the silent engine of efficiency.
The Value Proposition: The true power of RFID lies in its ability to bridge the physical and digital worlds. It offers unprecedented inventory accuracy (often boosting ranges from 65% to 99%), automates labor-intensive processes, and provides real-time visibility that empowers data-driven decision-making.
RFID did not appear as one finished invention. It assembled several ideas over decades: radar reflection, active transponders, passive backscatter, semiconductor memory, and later open EPC standards.

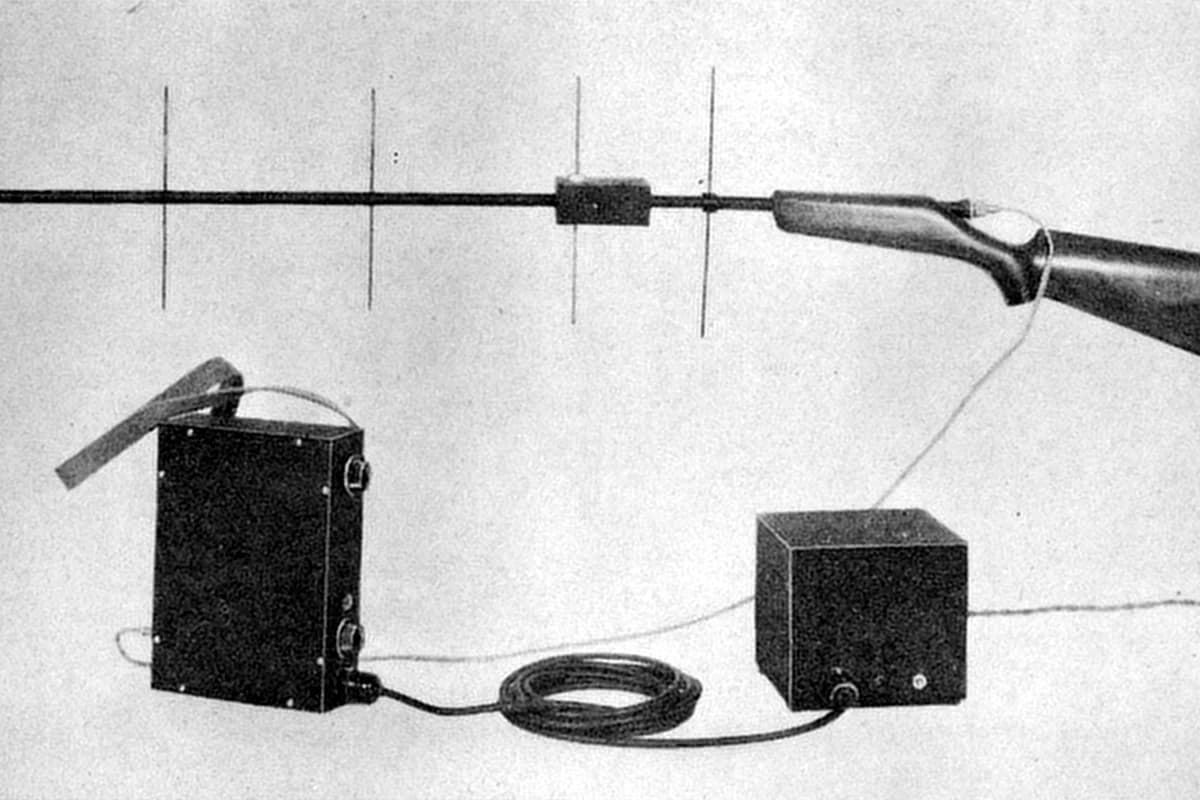

RFID grew out of radar: radio waves were transmitted, reflected, and interpreted at a distance. World War II identify-friend-or-foe systems added aircraft transponders that answered interrogation signals instead of only reflecting them.
Harry Stockman's paper on communication by reflected power described the core backscatter idea: a device can modulate a reflected carrier instead of generating a full-power radio signal itself.

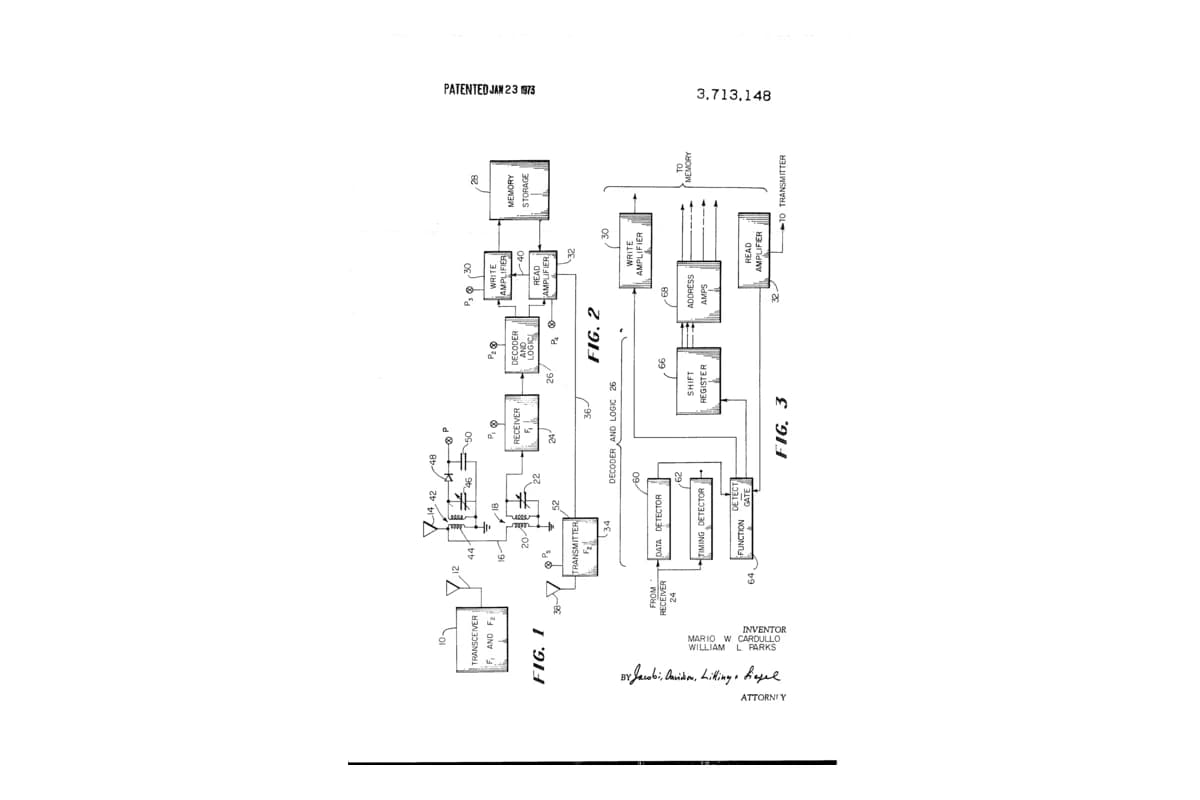

Mario Cardullo's transponder patent described a tag powered by the interrogation signal with changeable memory storage. That architecture is an early ancestor of RFID systems where the tag is more than a fixed reflector.
Charles Walton's electronic identification patent used passive resonant circuits that disturbed a reader field at coded frequencies. This explains the access-card branch of RFID: identity can be encoded in the RF load a passive object presents to a reader.
Government and lab work moved RFID into nuclear-material tracking, automated toll collection, animal identification, and building access. These systems proved that radio identity could survive real gates, vehicles, livestock, and work sites.
UHF systems extended range, and the MIT Auto-ID Center pushed low-cost tags that carried a serial number while product data lived in networked systems. EPCglobal Gen2 then gave supply chains a shared air-interface foundation.
Modern RFID is no longer just a tag read. RAIN UHF, HF/NFC, edge filtering, cloud identity, and product-passport records combine RF physics with software governance and lifecycle data.
Understanding RFID requires looking at the fundamental physics of radio waves and energy harvesting. The system relies on the principle of 'Backscatter' or 'Inductive Coupling', depending on the frequency.

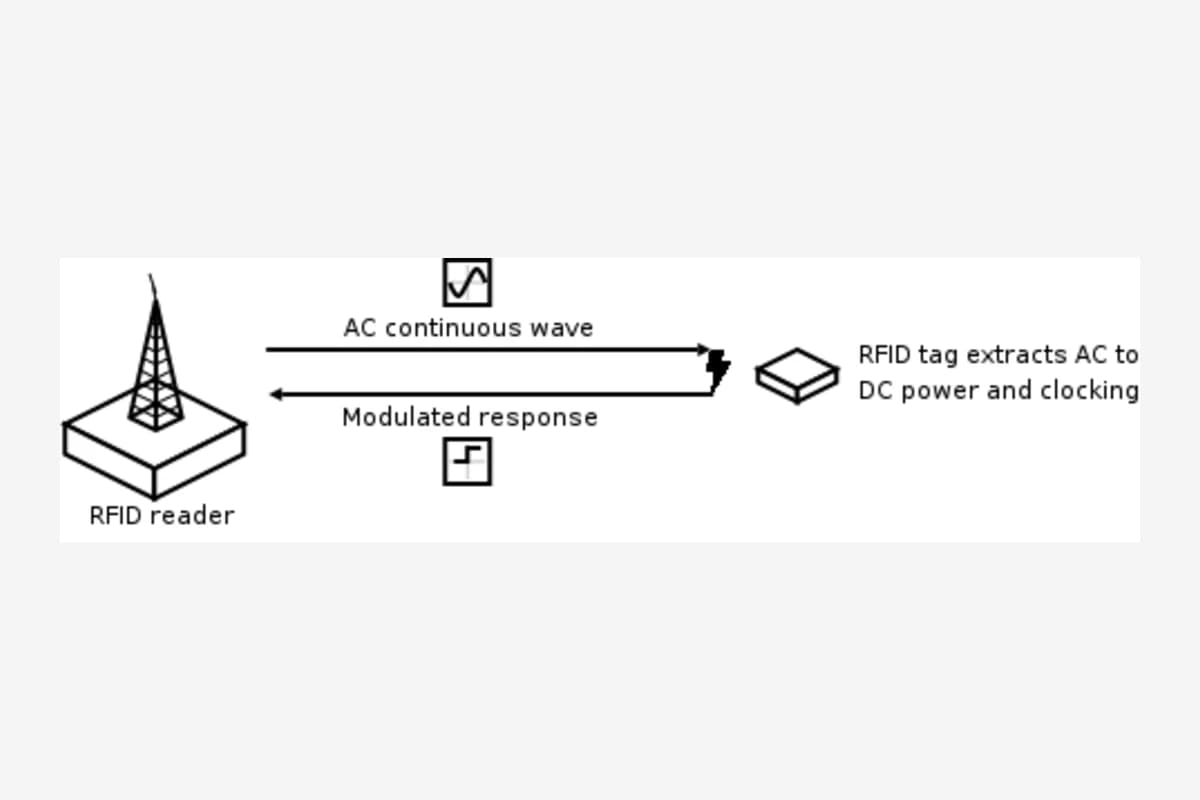

A reader generates a continuous RF carrier through the antenna. Passive tags harvest a small part of that field with a rectifier and charge pump inside the chip. The chip only wakes when received power passes its sensitivity threshold, so distance, antenna gain, cable loss, and tag orientation all matter.
A passive UHF tag does not create a fresh radio transmitter signal. It switches the load on its antenna between impedance states. That changes how much of the reader carrier is reflected, creating tiny sidebands that the reader receiver demodulates into RN16, EPC, TID, or user memory data.
LF and HF systems mainly use magnetic inductive coupling in the near field. UHF RAIN RFID mainly uses electromagnetic propagation in the far field. At 915 MHz the wavelength is about 33 cm, so practical UHF reads are governed by propagation, reflection, polarization, and multipath.
Two links must close. The forward link must deliver enough RF power to activate the tag. The reverse link must return enough backscatter for the reader sensitivity floor. A failed read can come from either side, which is why power tuning alone does not always fix a deployment.
Water absorbs UHF energy and metal reflects or detunes ordinary dipole tags. On-metal tags add a spacer or tuned structure, textile tags use antenna geometry that survives bending, and liquid products often need placement away from the highest-loss path.
Readers do not hear one clean tag at a time in dense zones. EPC Gen2 inventory rounds use slotted anti-collision. Tags pick slots, answer with a random RN16, then reveal EPC data after acknowledgement. Session flags help control which tags continue replying.
Most passive RFID systems operate on the 'Reader-Talks-First' principle. The reader emits a continuous wave (CW) of RF energy. When a tag enters this field, it powers up and modulates the reflection of this wave to communicate back.
Inductive Coupling (LF/HF): Uses a magnetic field. The reader coil and tag coil form a transformer. Works only at close range (Near Field).
Radiative Coupling (UHF): Uses electromagnetic waves. The tag reflects a portion of the incoming energy back to the reader (Backscatter). Allows for long-range communication (Far Field).

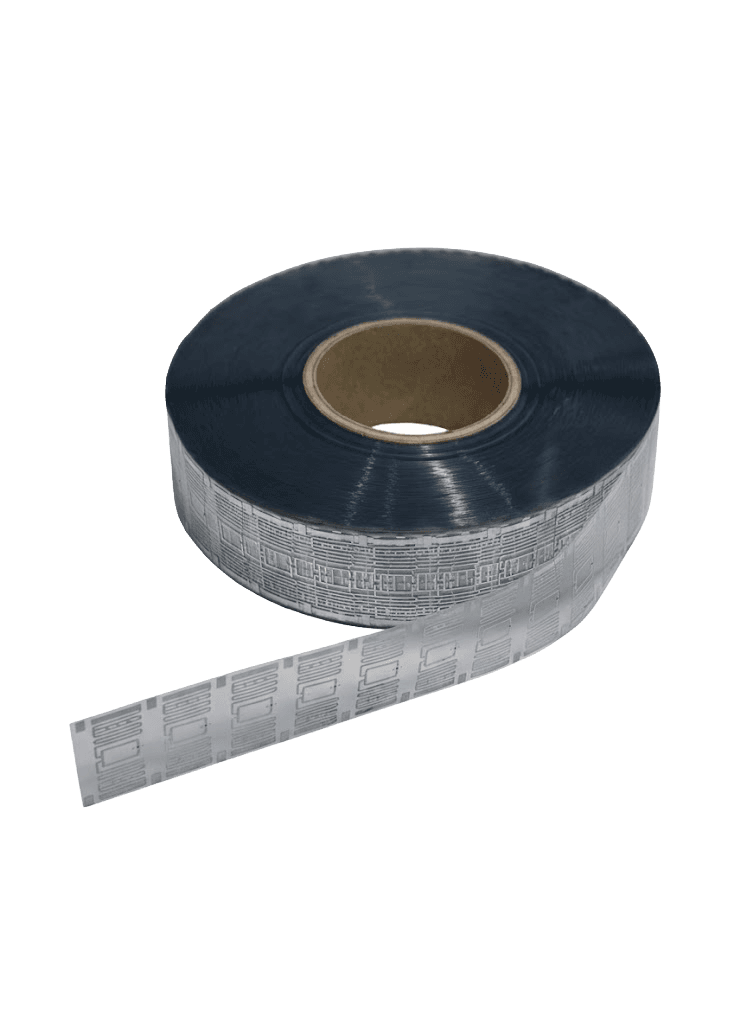

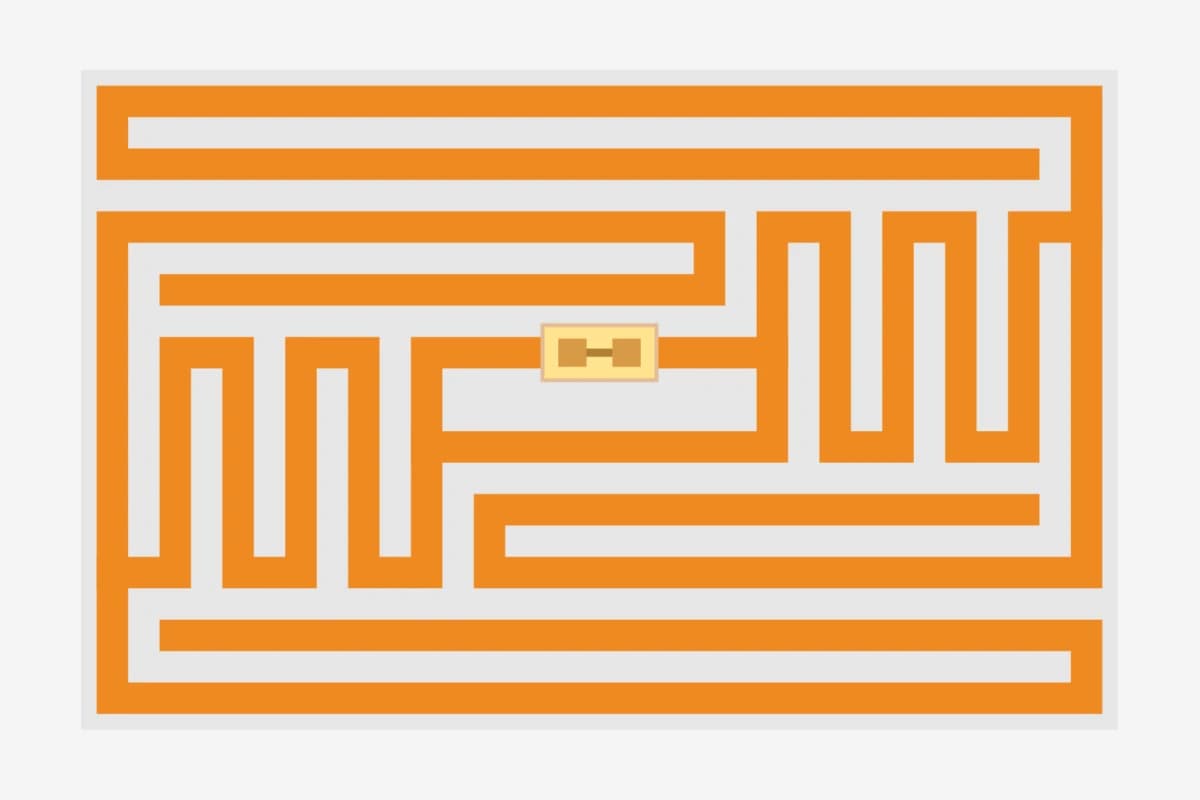

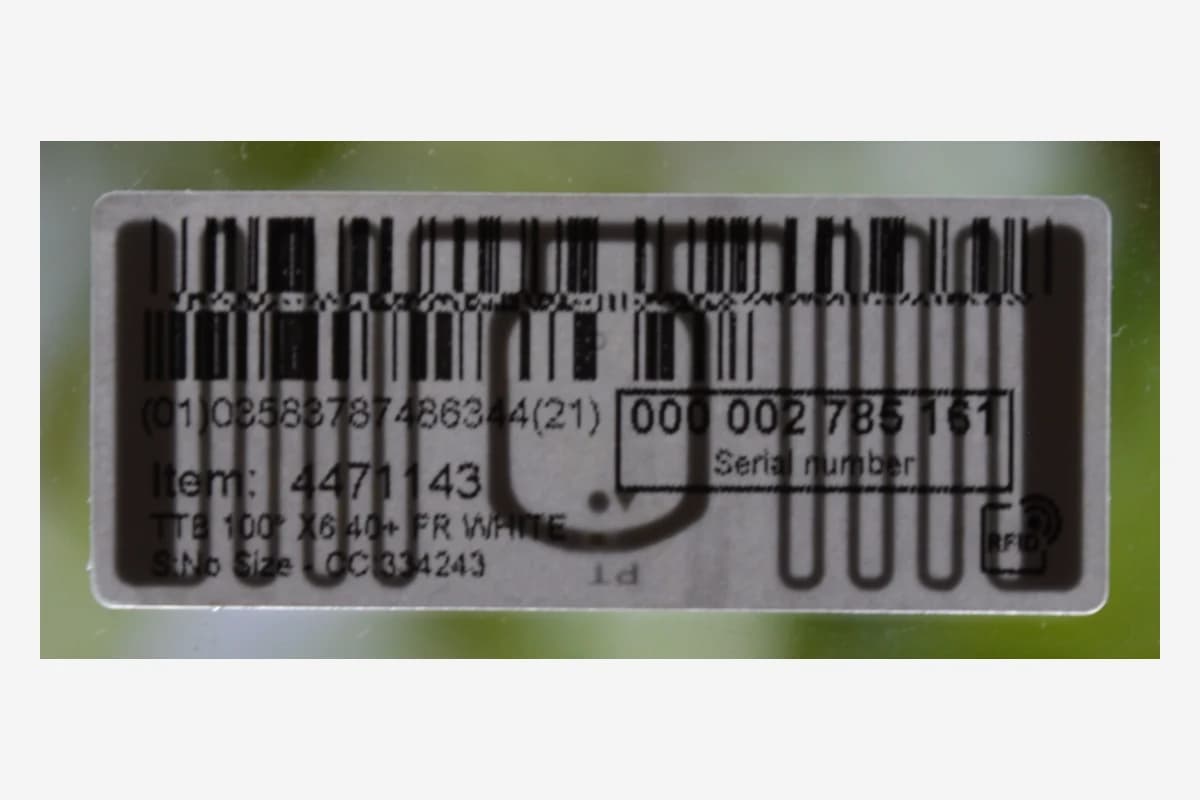

The Tag (Transponder): Composed of a microchip (IC) that stores data and logic, attached to an antenna which harvests energy and transmits signals. The chip and antenna are bonded to a substrate (PET/Paper).

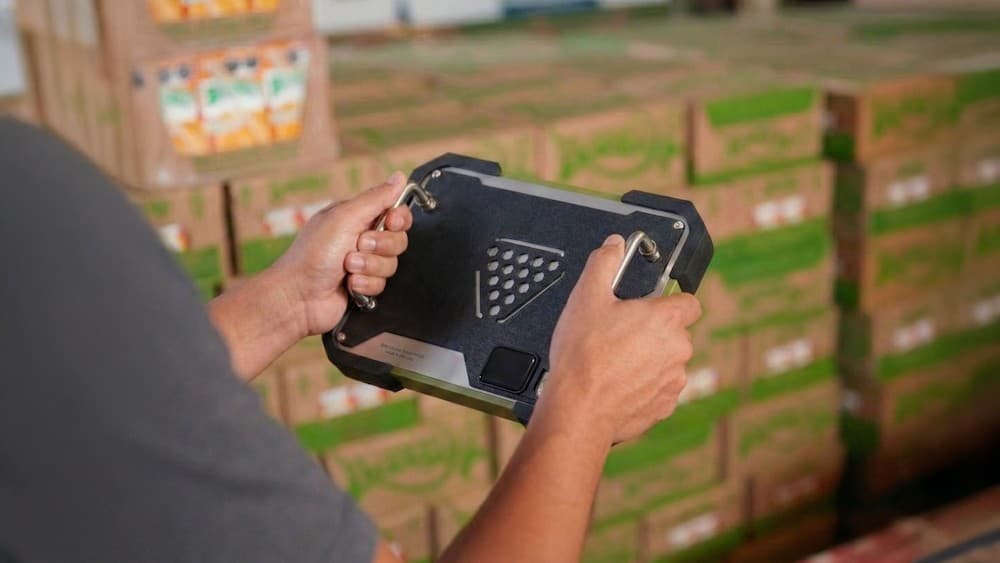

The Reader (Interrogator): The brain of the operation. It generates the RF signal, receives the tag's response, and decodes the binary data. Readers can be fixed (mounted at dock doors) or handheld (for mobile inventory).
The Antenna: The reader's voice and ears. It shapes the RF field. Circularly polarized antennas are versatile and can read tags in any orientation, while lineary polarized antennas offer longer range but require specific tag alignment.
Uses inductive coupling. Extremely robust near metals and liquids but has very short range and low data rates. Standard for animal tagging and simple access control.
Also uses inductive coupling. Regulated globally. NFC (Near Field Communication) is a subset of HF. Ideal for secure payments, ticketing, and consumer engagement ('tap-to-connect').
Uses radiative coupling. The standard for supply chain and retail. Offers long read ranges (up to 12m+), fast data transfer, and bulk reading capabilities (hundreds of tags per second).
No battery. Powered entirely by the reader's field. Infinite lifespan, low cost.
On-board battery for broadcasting. Longest range (100m+) but expensive and limited life.
Battery boosts the return signal but doesn't initiate it. Specialized use cases.
A unique, unalterable serial number burned in by the manufacturer. It identifies the chip model.

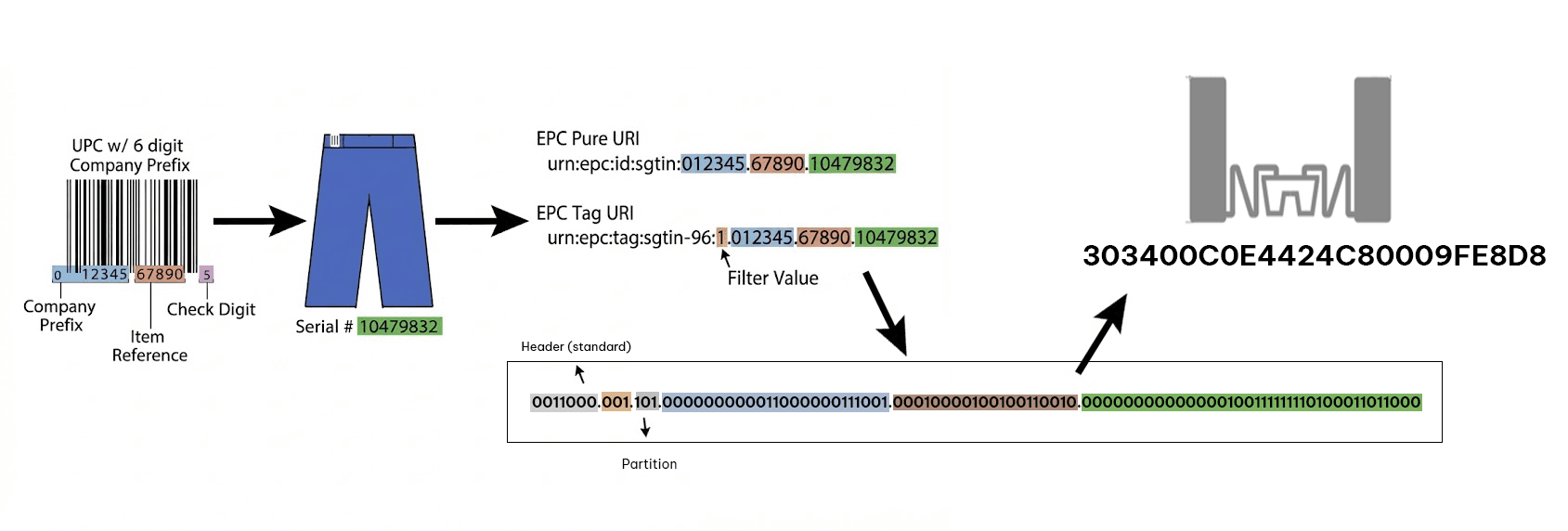

The writable memory bank that stores the item's unique identifier (e.g., SGTIN). This is what readers search for.
An optional bank for additional data like batch numbers or expiration dates.
Stores the Access Password (to lock data) and Kill Password (to permanently disable the tag).
The hardware sees every tag 100 times a second. Software's job is to filter this 'noise' into meaningful business events.
Middleware (like the ALE standard) sits between readers and apps. It configures reader settings, manages firmware, and translates raw RF signals into logical data.
Raw reads are filtered at the edge. Algorithms de-duplicate reads, filter out stray tags, and aggregate data into logical events like 'Item Arrived' or 'Item Departed' before sending to the cloud.
Clean data is pushed to ERPs (SAP, Oracle) or WMS via APIs, Webhooks, or MQTT. This real-time sync ensures the 'Digital Twin' matches physical reality.
Boosts inventory accuracy to 99% with weekly cycle counts that take minutes, not hours. Enables smart fitting rooms, magic mirrors, and seamless BOPIS (Buy Online, Pickup In Store) operations.
Automated verification at dock doors ('ASNs'). Real-time tracking of Returnable Transport Items (pallets, totes). Cross-docking without manual breakdown.
Full traceability of Work-in-Progress (WIP). Tool tracking to prevent FOD (Foreign Object Debris). Automated genealogy of assembled parts.
Serialized tracking of medications to prevent counterfeiting. Asset tracking for high-value equipment like IV pumps. Surgical instrument tracking for sterilization compliance.
Temperature-logging tags monitor perishables from farm to fork. If limits are breached, the tag flags the item, ensuring food safety and compliance.
Before buying tags, analyze the environment. RF interference (metal shelving, water pipes, Wi-Fi networks) must be mapped to position readers correctly.
Where does the tag go? 'Item-Level' tagging gives full visibility but costs more. 'Case-Level' or 'Pallet-Level' is cheaper but less granular. The tag placement is consistent to ensure readability.
Tagging liquids (water absorbs RF) and metals (metal reflects/detunes RF) requires special tags. On-metal tags use a spacer to create a mini-chamber for the signal.
ROI comes from labor savings (96% less time counting stock), shrinkage reduction (knowing what was stolen and when), and increased sales (items are actually on the shelf).
Tags can lock memory banks or accept a kill command at point of sale for permanent deactivation. For high-value goods, cryptographic chips reduce cloning and counterfeiting risk.
UHF RFID uses GS1 EPC Gen2 and ISO/IEC 18000-63 as the shared air-interface foundation. A correctly encoded tag in Vietnam can still be read by compliant readers in other markets.
Passive RFID is not GPS: tags do not broadcast location and only respond inside a reader field. Retail deployments can use kill commands, reduce exposed EPC data, and provide clear signage.

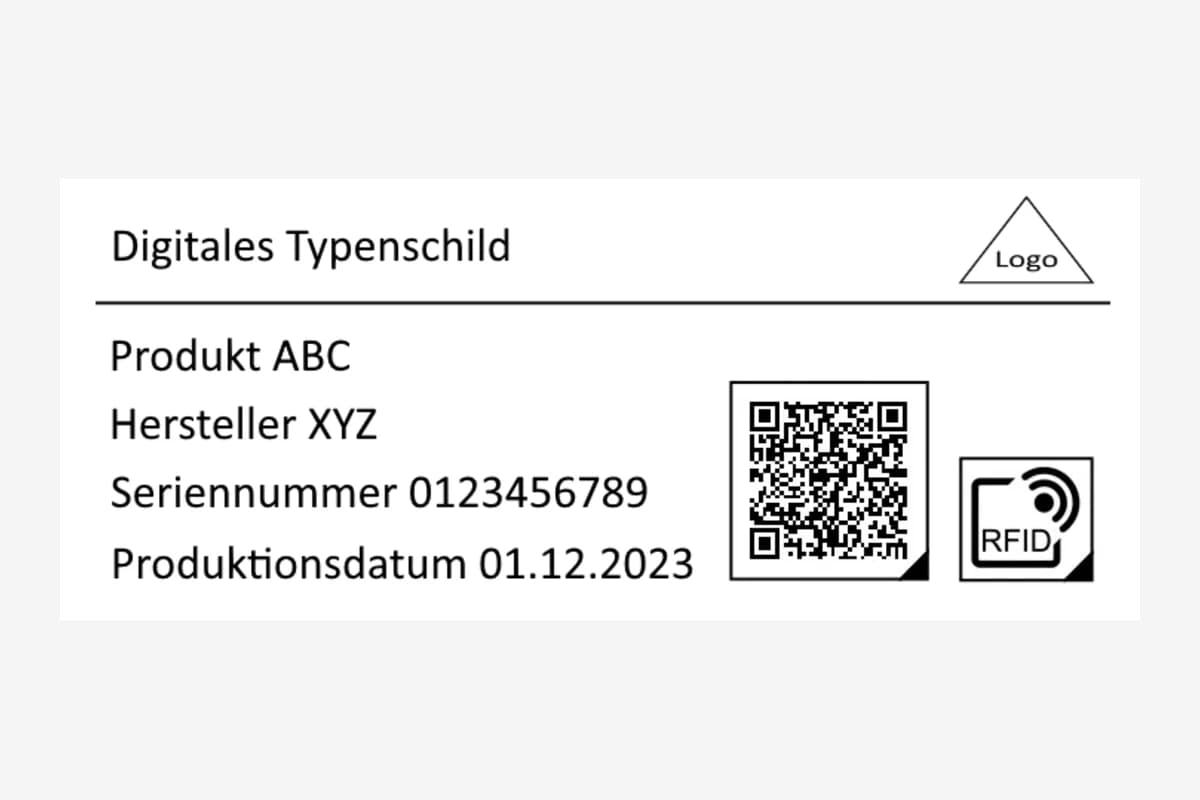

Upcoming EU regulations will require products to have a digital record of their sustainability. RFID will carry this data for recycling and circular economy.
Moving towards 'chipless' or printed carbon antennas to reduce cost and environmental impact, making RFID viable for even low-cost food items.
Machine Learning models analyze the millions of data points from RFID readers to predict supply chain bottlenecks before they happen.
RFID stands for Radio Frequency Identification. While the name might sound technical, the concept is quite simple: it is a wireless technology that uses radio waves to automatically identify and track tags attached to objects. Think of it like a wireless version of a barcode. However, unlike a barcode that needs to be seen to be scanned, RFID uses radio waves to 'talk' to the reader, allowing it to be identified without a direct line of sight.
An RFID system isn't just one single device; it's a team of three main players working together. First, you have the RFID Tag (or transponder), which is a tiny microchip attached to an antenna that gets placed on the item you want to track. Second, you have the RFID Reader (or interrogator), which acts as the brain that sends out radio signals to find the tags. Finally, there's the Antenna, which acts as the voice and ears of the reader, broadcasting the signal and listening for the tag's reply. Together, they create a seamless communication loop.
The magic of RFID happens through a process called 'backscatter' or 'coupling'. It starts when the Reader sends out a radio wave signal through its antenna, looking for any tags nearby. When a passive RFID tag enters this zone, its antenna picks up that energy from the reader's signal. This energy wakes up the tiny chip inside the tag. The tag then uses that same energy to reflect a signal back to the reader, carrying its unique identification number. The reader catches this reflection, decodes the number, and sends it to a computer system for processing - all happening in a fraction of a second.
The main difference is where they get their power. Passive tags are the most common and affordable type; they have no battery inside. They sit dormant until they are 'woken up' by the energy from an RFID reader's radio waves. Because they don't have a battery, they are cheaper and last essentially forever. Active tags, on the other hand, have their own built-in battery. This allows them to shout their signal much louder and farther, reaching over 100 meters, but they are larger, more expensive, and will eventually run out of battery.
A Semi-passive (also called Battery-Assisted Passive or BAP) tag is a hybrid. It has a small battery, but unlike an active tag, it doesn't use that battery to broadcast a signal. Instead, the battery is used only to keep the chip running or to power onboard sensors (like a temperature logger). It still relies on the reader's signal to communicate back. This design gives it better sensitivity and reading reliability than a standard passive tag, without the high cost and power drain of a fully active tag.
RFID isn't 'one size fits all'; it operates in different 'lanes' or frequency ranges depending on the job. Low Frequency (LF) operates at 125–134 kHz; it's short-range but tough, great for animal tracking. High Frequency (HF) runs at 13.56 MHz; this includes NFC technology used for payments and keycards. Finally, Ultra-High Frequency (UHF) operates at 860–960 MHz; this is the powerhouse for supply chain and retail because it offers long read ranges (up to 12m) and fast data transfer speeds.
The reading distance varies greatly depending on the type of tag and frequency used. For LF and HF/NFC tags, the range is intentionally short - usually touching distance up to 1 meter - for security and precision. Passive UHF tags, the standard for inventory, can be typically read from 5 to 12 meters away. If you need extreme range, Active tags with batteries can easily be read from 100+ meters away, making them ideal for tracking trucks or shipping containers in large yards.
Absolutely! This is one of RFID's superpowers compared to barcodes. A barcode scanner can only read one code at a time, but an RFID reader can identify hundreds of tags simultaneously in just a few seconds. This capability is called 'bulk scanning' or 'anti-collision'. It means you can wave a handheld reader over a box full of 50 shirts and count them all instantly without ever opening the box.
No, and that is a major advantage. Radio waves have the ability to penetrate most common materials. This means an RFID reader can 'see' a tag even if it's inside a cardboard box, buried in a stack of clothes, or hidden behind a plastic panel. As long as the material isn't metal (which reflects signals) or water (which absorbs them), the radio waves will travel through it to read the tag.
Yes, they are the natural enemies of standard RFID signals. Metal surfaces act like a mirror for radio waves, reflecting them away and preventing the tag from charging. Liquids (like water in a bottle or the human body) absorb the energy, dampening the signal. However, engineers have solved this with specialized 'On-Metal' tags that act as a spacer to lift the antenna off the metal surface, and by tuning tags specifically to work better near liquids. So, while it is a challenge, it is a solvable one.
Think of a barcode like a license plate that you have to take a clear photo of to read - you need good light and a direct line of sight. RFID is like an E-ZPass toll transponder; it just needs to be near the reader to be detected. Barcodes are 'read-only' and generic (identifying the product type), whereas RFID tags can be scanned in bulk without being seen, can store unique serial numbers for every single item, and some can even be rewritten with new data.
This is a common point of confusion: NFC (Near Field Communication) is actually a specific type of RFID. It operates in the High Frequency (HF) range. The key difference lies in usage and range. General RFID (especially UHF) is built for range and volume - tracking boxes in a warehouse from 10 meters away. NFC is designed for proximity and security - securely transferring data over just a few centimeters, like tapping your phone to pay or pairing a Bluetooth speaker.
On a per-tag basis, yes. A barcode is essentially free - it's just ink on paper. A passive RFID tag includes a microchip and antenna, costing anywhere from 5 to 15 cents. However, looking only at the tag cost misses the bigger picture. The value of RFID comes from the massive labor savings (scanning inventory in minutes instead of days) and the accuracy gain (reducing lost sales from out-of-stock items). For most businesses, these operational savings far outweigh the cost of the tags.
Retailers use RFID for real-time inventory management, theft prevention, and faster checkout processes. It helps ensure that shelves are always stocked and reduces the time needed for manual stocktaking. Instead of manual counts that happen once a year, store staff can perform weekly cycle counts in minutes using a handheld wand. This ensures that the system knows exactly what is in stock, enabling features like 'Smart Fitting Rooms' (which recommend matching items) and making 'Buy Online, Pickup In Store' (BOPIS) reliable because the stock data is actually correct.
In logistics, speed and accuracy are everything. RFID portals are placed at dock doors so that as a forklift drives a pallet of goods onto a truck, the system automatically reads every single item on that pallet, verifying the shipment against the order instantly. It creates a digital trail for every carton, ensuring that the right goods go to the right destination without needing a person to stop and aim a barcode scanner at every box.
In healthcare, RFID can quite literally be a lifesaver. It is used to track high-value assets like infusion pumps and wheelchairs so nurses don't waste time searching for them. It's critical for medication management, ensuring that drugs are authentic and haven't expired. It's also used for patient safety via wristbands to confirm identity before surgeries, and even for tracking surgical sponges to ensure nothing is left behind after an operation.
You likely use this every day without realizing it! The keycard you tap to enter your office or the fob you use for your apartment building uses LF or HF RFID. When you hold the card near the reader on the wall, the reader powers up the card's chip, checks its unique ID code against a database of authorized users, and if it finds a match, it unlocks the door. It's secure, easy to manage (cards can be deactivated instantly), and convenient.
Security varies by tag type, but modern RFID has robust options. Basic inventory tags act like a license plate - publicly readable but meaningless without access to the backend database. However, for sensitive applications, we use crypto-tags with high-level encryption that can't be cloned. Additionally, tags can be password-protected to prevent unauthorized writing, meaning no one can overwrite your data. For consumer privacy, tags can receive a 'Kill Command' at the point of sale, permanently deactivating them.
This is a popular myth fueled by movies, but the reality is much less scary. While older proximity cards were simpler, modern contactless credit cards and passports use sophisticated encryption and dynamic rolling codes. This means the data changes with every transaction. Even if someone with a powerful reader managed to interact with your card, the data they captured would be a one-time code that is useless for making a future transaction. The risk is vanishingly small in the real world.
The future is about ubiquitous connectivity. We are moving towards a world where almost every physical item - from the clothes you wear to the food you buy - has a digital identity. We are moving toward 'Integrated IoT', where RFID data is combined with AI and cloud analytics to create smart warehouses and fully automated retail environments. We are also seeing the rise of Eco-friendly tags made of paper rather than plastic to reduce plastic waste.
