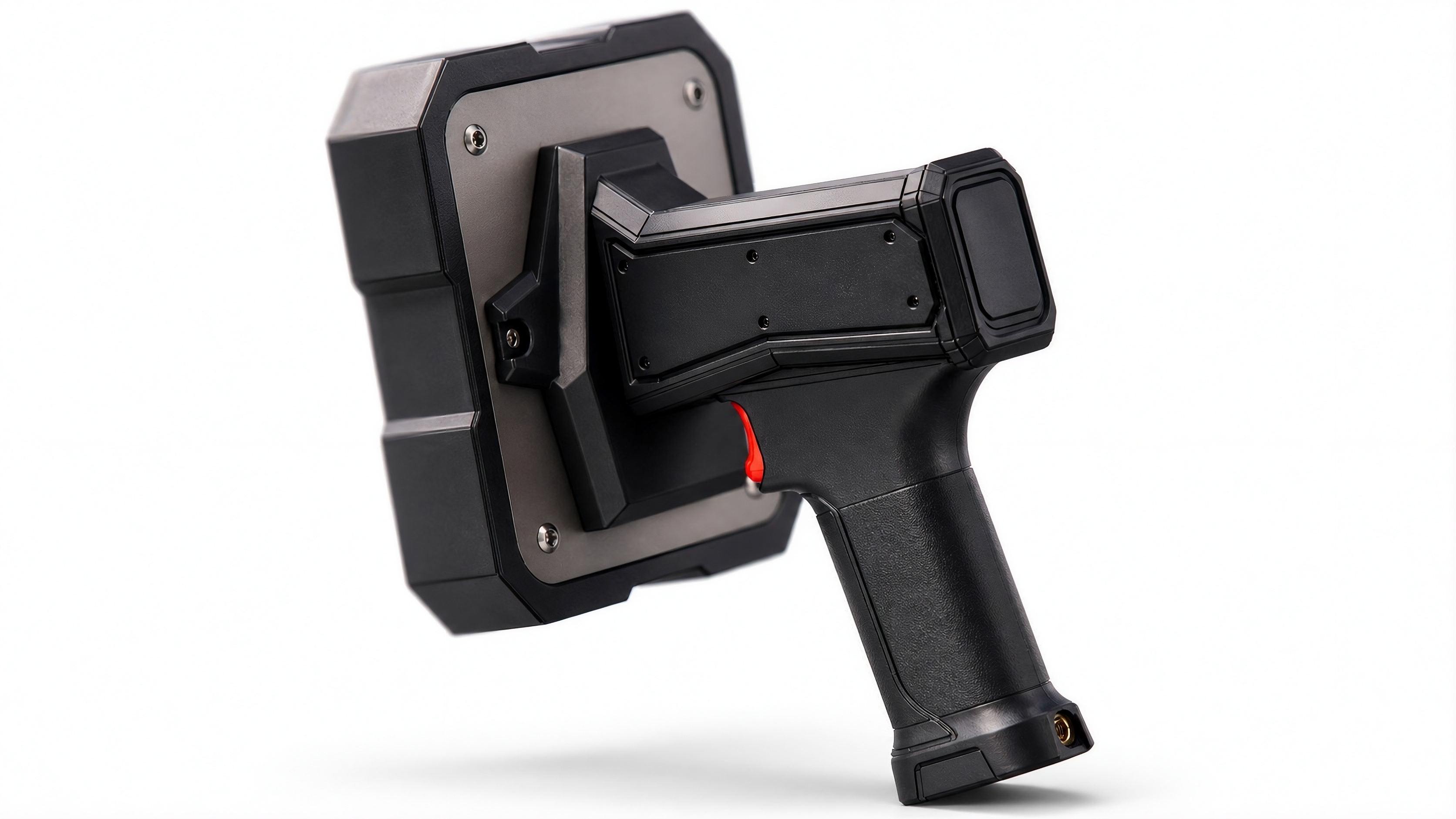

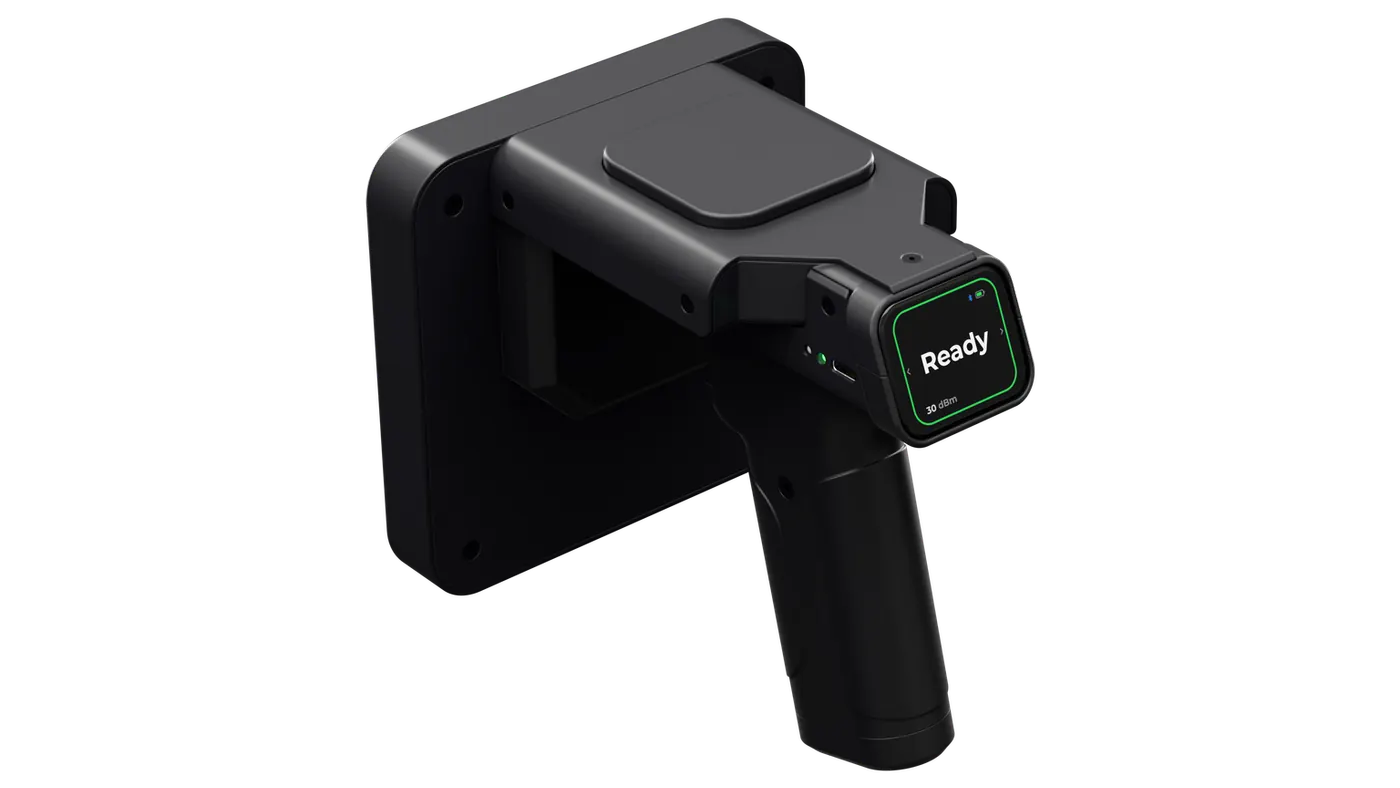

RFID Handheld Single-Hand Reader
Single-hand handheld UHF RFID reader built around a 6 dBic circular-polarization panel antenna, tuned to the 902 - 928 MHz US band.
- Frequency: 902 - 928 MHz
- Gain: 6 dBic
- Dimensions: 220 x 160 x 90 mm
- TQC - B2101157Certificate of conformity (CR)
Description
Single-hand handheld UHF RFID reader built around a 6 dBic circular-polarization panel antenna, tuned to the 902 - 928 MHz US band. Bluetooth 5.0 pairs the reader with phones, tablets and host PCs in seconds, while the mechanical trigger and 5200 mAh Li-ion battery keep teams moving through inventory counts, dock checks, asset audits and receiving sweeps for a full shift.
Features
- Bluetooth 5.0 wireless pairing with phones, tablets and host PCs
- 6 dBic circular-polarization panel antenna for tag-orientation tolerance
- Ergonomic single-hand grip with mechanical trigger for fast one-handed scanning
- 5200 mAh Li-ion battery for up to 10 hours of continuous read
- DC charging at 12 V / 2 A
Applications
- Warehouse inventory counts
- Asset audits and verification
- Receiving and shipping checks
- Yard and dock door operations
- Retail stock-takes
Technical Specifications
- Operating Frequency
- 902 - 928 MHz
- Working Protocol
- EPC Class 1 Gen 2 (ISO 18000-6C)
- Antenna Gain
- 6 dBic
- Polarization
- Circular
- RF Output Power
- Max 30 dBm, configurable in 1 dBm steps
- Read Distance
- Up to 6 m (tag-dependent)
- Read Speed
- Up to 700 tags/second
- Connectivity
- Bluetooth 5.0
- Trigger
- Mechanical scan trigger with audible feedback
- Battery
- 5200 mAh Li-ion, up to 10 hours continuous read
- Charging
- DC, 12 V / 2 A
- Cover
- Reinforced ABS housing, textured grip
- Dimensions
- 220 x 160 x 90 mm
- Weight
- 750 g
- Operating Temperature
- 10 °C ~ +50 °C
- Ingress Protection
- IP54
- Certificate of conformity (CR)
- TQC-B2101157
